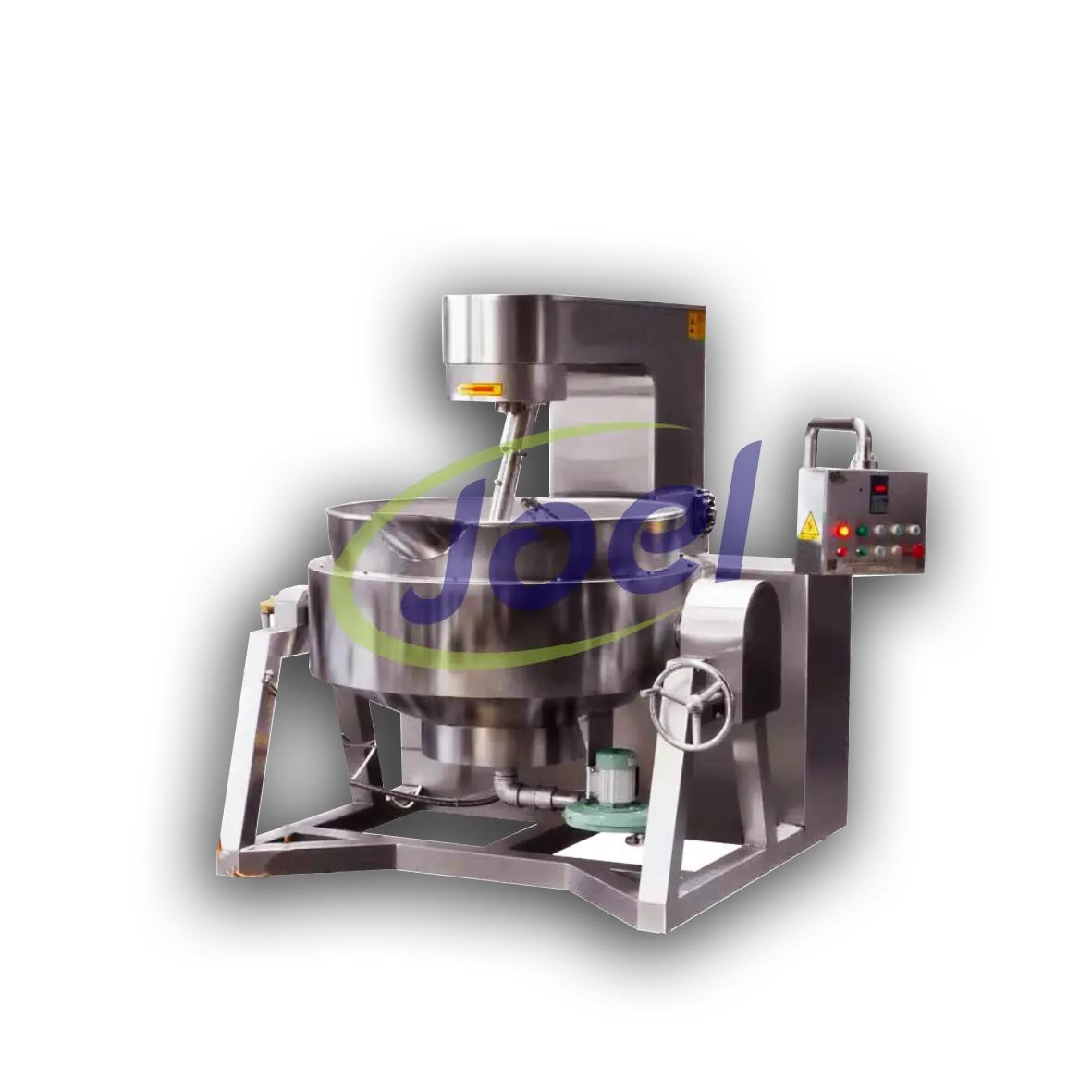

Jacketed Dish Pan with Planetary Stirrer

Ayurvedic pharmaceutical industry, food industry, beverage industry, etc.
Stainless steel Jacketed Dish Pan with Planetary Stirrer is used for cooking various food preparations like curries, gravies, etc. Indirect heating by Steam or Thermic fluid is used. Single or double jacket options are available. A revolving head with planetary drive is connected to teflon lined stirrer for stirring operation. Tilting arrangement is provided for the entire vessel for the easy discharge of cooked material. Thermal insulation with mineral wool and stainless steel cladding is also provided around the vessel for protection from heat. Heat can be regulated according to requirement, resulting in saving of cost and for improvement in quality.
Dished bottom vessel for flat type cooking, double Jacket option, planetary stirrer for better stirring, detachable stirrer for easy cleaning, tilting arrangement for discharge, complete stainless steel construction, thermal insulation with stainless steel fully welded cladding, full covered lid in stainless steel.
Ayurvedic pharmaceutical industry, food industry, beverage industry, etc.
Model Working Capacity Dimensions Motor
150L 100Ltrs 1000 Dia 1Hp
300L 180Ltrs 1200mm 3Hp
500L 300Ltrs 1500mm 5Hp

Similiar Product of Jacketed Dish Pan with Planetary Stirrer

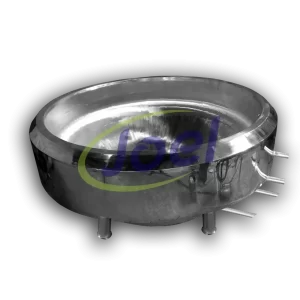

Jacketed Dish Pan
